Phocus3

Phocus3 THE MOST INTELLIGENT ACOUSTIC LEAK DETECTION SYSTEM

Phocus3 is an advanced leak noise logger designed for detecting and localising water leakage. Wireless communications allows both ‘lift and shift’ or permanent distribution network operation. On site leakage results may be obtained via the Communications Module with detailed analysis carried out on the host software.

Phocus3 Features:

	Rapid overnight identification of leaks
	Two models available; 1.) local IR contact (lift + shift operation) 2.) radio contact (greater range for permanent installation)
	Small size
	Histogram display of noise data
	Phocus noise algorithm to reduce incidence of un-detected leaks
	GPS coordinates stored in logger
	Leak listening – real time (whilst on site) – recorded to aid remote leak identification

phocus_side_1

phocus_side_2

Operation:
Phocus3® is so ‘smart’ it can automatically identify the presence of a leak. This allows for use in either survey mode or for permanent installation. Phocus3® gives visual indication of a leak or it can be used with advanced software and produce graphic and tabulated results.
Acoustic logging is a very cost effective way of reducing leakage to extremely low levels. It allows water distribution systems to ‘focus’ resources on leakage.

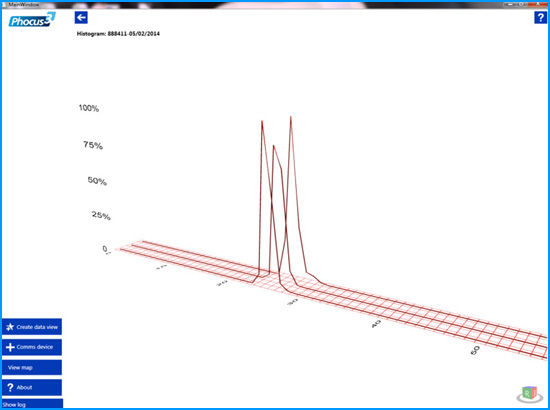

phocus3-graph-blue

Histogram display for each epoch.

phocus3-graph-chart-blue

Data view show status of all deployed loggers.

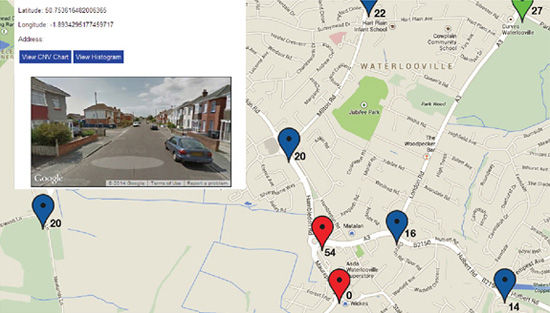

googlemap

Leakage status displayed on a Google Map
