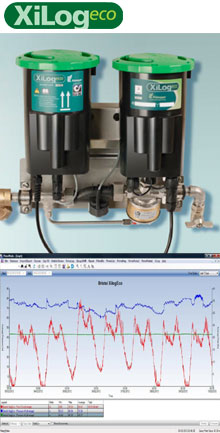

XiLog-Eco WATER POWERED REMOTE DATA LOGGER

XiLog-Eco is a remote sustainable data logger powered by a turbine driven by a pressure differential. It produces a high resolution of data, with more frequent data transmission and sample intervals. This is achieved without visits to site to replace a battery, and thereby minimizes the impact on the environment. Access current and in-depth network data without compromising performance.

XiLog-Eco utilises the e-Power MP device from CLA-VAL and uses pressure drop to produce power. This is an electrical generator installed into a by-pass on a pressure reducing valve, or other valves, where a minimum of six metres differential pressure is available. The differential pressure across the generator is controlled by a pilot which thus controls the electrical power output from the generator. The generator output is fed to a rechargeable battery via a charge management system. The battery stores power to allow uninterrupted operation of XiLog-Eco in times of diminished differential pressure. The constant source of power allows the possibility of data transmission, of one second samples, as often as every fifteen minutes.



H2onet | XiLog Eco Features:

h2onet xilog-eco
Data transmissions every 15 minutes
h2onet xilog-eco
Ecologically friendly
h2onet xilog-eco
Reduces site visits
h2onet xilog-eco
Reliable data transmissions with Hi-tech below ground antenna
h2onet xilog-eco
Sophisticated alarm systems



Applications:

h2onet xilog-eco
District and zone flow monitoring, leakage detection, consumption monitoring
h2onet xilog-eco
Network modelling
h2onet xilog-eco
Pressure level monitoring
h2onet xilog-eco
PRV performance
